Helipad Perimeter Lighting: Defining the Edge of Safety and Precision

In modern aviation, where vertical takeoffs and landings are routine, helipads have become integral parts of hospitals, corporate buildings, offshore platforms, and urban rooftops. One of the most critical safety features of these landing areas is helipad perimeter lighting, which ensures pilots can identify and approach landing zones with clarity—especially during nighttime or low-visibility conditions.



This article explores the importance, functionality, and standards of helipad perimeter lighting, its role in enhancing safety, and the innovations shaping its future.



Understanding the Purpose of Helipad Perimeter Lighting

Helipad perimeter lighting refers to the illumination system installed around the edges of a designated helicopter landing area. Its primary functions are:



Visual Identification: It enables pilots to visually detect the helipad from a distance and identify the exact boundaries.

Orientation and Alignment: It assists in aligning the helicopter correctly during approach and landing.



Safety Assurance: It provides clear spatial awareness, reducing risks of deviation or collision with surrounding structures.

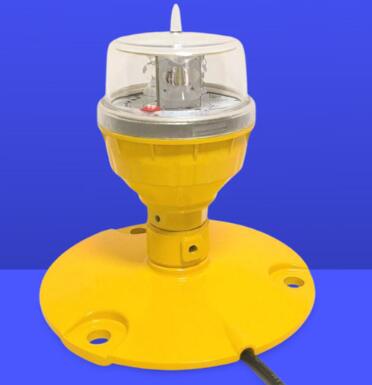

helipad perimeter lighting

Compliance with Aviation Standards: Most aviation authorities mandate perimeter lighting for night or low-visibility operations.



Without proper perimeter lighting, even the most skilled pilots may struggle to land safely, particularly in complex environments like densely built urban areas or remote offshore rigs.



Key Features of Effective Helipad Perimeter Lighting

To perform its function reliably, helipad perimeter lighting must possess specific characteristics:



1. High Visibility

The lights are typically green, as mandated by aviation standards, and are spaced evenly around the touch-down and lift-off area (TLOF). The intensity must be sufficient for both VFR (Visual Flight Rules) and IFR (Instrument Flight Rules) operations.



2. Durability

Outdoor helipads are exposed to harsh conditions—UV rays, rain, wind, salt air, and debris. Lights must be corrosion-resistant, waterproof, and impact-resistant to endure these factors.

helipad perimeter lighting light

3. Low-Profile Design

Perimeter lights should have a minimal height profile to prevent damage during landings and to avoid becoming a tripping hazard for ground personnel.



4. Energy Efficiency

Most modern systems use LED technology, providing bright illumination while minimizing energy consumption and maintenance.



5. Automatic Activation

Sensors can control light activation based on ambient light conditions (dusk-to-dawn operation), enhancing convenience and operational readiness.



6. Power Options

Perimeter lights can be powered by grid electricity, solar panels, or hybrid systems, depending on the site’s energy availability and operational demands.



Regulatory Standards Governing Helipad Perimeter Lighting

Aviation safety bodies provide specific guidelines for installing and operating helipad lighting systems:



ICAO (International Civil Aviation Organization): The ICAO Annex 14, Volume II outlines standards for helipad perimeter lighting, such as light color, placement intervals, and photometric intensity.



FAA (Federal Aviation Administration): The FAA Advisory Circular 150/5390-2 provides detailed specifications for heliport design and lighting in the U.S.



EASA (European Union Aviation Safety Agency): European guidelines also align with ICAO standards, ensuring uniformity in international aviation operations.



Adhering to these standards is essential for regulatory compliance and insurance coverage, especially for commercial or medical-use helipads.



Applications of Helipad Perimeter Lighting

Helipad perimeter lighting is crucial across a wide range of environments, including:



Hospital Helipads: Medical evacuation (medevac) flights often occur at night or during emergencies, requiring reliable perimeter lighting for life-saving operations.



Offshore Platforms: Oil rigs and wind farms rely on clearly defined landing zones to handle crew transfers and cargo drops.



High-Rise Buildings: Rooftop helipads in cities support VIP transport and air ambulance services, where lighting must counter the challenges of ambient city glare.



Temporary or Remote Helipads: Emergency response scenarios and military operations often deploy portable lighting systems to mark temporary landing zones quickly.



Technological Innovations in Helipad Perimeter Lighting

The field of helipad perimeter lighting continues to evolve with technological advancements:



• Solar-Powered Lighting

Self-contained solar lighting units reduce the need for cabling and external power sources. These systems are especially beneficial in remote or emergency environments.



• Wireless Control Systems

Lighting can be activated, dimmed, or tested remotely via control panels or mobile devices, enhancing operational flexibility.



• Smart Diagnostics

Modern systems feature built-in diagnostics to monitor light performance and battery health, notifying operators of faults before they become critical.

Helipad Perimeter Lighting lights

• Modular Design

Some lighting systems are designed to be modular, enabling quick installation, replacement, or configuration adjustments as needed.



These innovations aim to enhance reliability, reduce maintenance costs, and support sustainable aviation infrastructure.



Installation and Maintenance Considerations

Proper installation of helipad perimeter lighting is as critical as the system itself. Key factors include:



Correct Placement: Lights should be installed at precise intervals (typically every 3 to 5 meters), forming a clear outline of the TLOF.



Power and Backup Systems: In addition to solar or primary power, battery backup systems are often included to ensure continuous operation during outages.



Routine Inspections: Regular checks are essential to ensure functionality, especially for lights exposed to corrosive or extreme environments.



Cleaning and Lens Clarity: Dirt or salt buildup can reduce visibility, making routine cleaning part of essential maintenance.



Challenges in Helipad Lighting Implementation

Despite technological progress, some challenges persist:



Urban Light Pollution: In cities, excessive ambient lighting can diminish the visibility of perimeter lights, requiring careful intensity calibration.



Environmental Conditions: Snow, ice, or sand can cover lights and reduce their effectiveness, calling for robust designs and protective features.



Regulatory Heterogeneity: Global operations may face differing national standards, requiring tailored lighting configurations depending on jurisdiction.



Addressing these challenges requires close coordination between lighting suppliers, helipad designers, and aviation authorities.



Future Outlook: Smarter, Safer, and More Sustainable

As urban air mobility, drone delivery, and eVTOL (electric vertical take-off and landing) platforms emerge, helipad perimeter lighting will play an even more significant role in supporting a new class of aviation infrastructure.



In the coming years, we can expect:



Integration with Urban Air Traffic Management (UATM): Lighting systems that communicate with aerial traffic control networks for automated coordination.



Enhanced Visual Guidance Systems: Combining perimeter lights with augmented reality (AR) overlays in pilot helmets or digital cockpit displays.



Environmentally Adaptive Lighting: Systems that adjust brightness based on real-time weather or visibility data for optimal performance.



These trends will not only improve safety but also redefine how helipads are designed, operated, and maintained in smart cities and remote locations alike.



Helipad perimeter lighting is more than a regulatory requirement—it's a cornerstone of safe and efficient vertical aviation. From hospitals to offshore rigs, and from city rooftops to temporary emergency sites, the presence of well-designed, reliable perimeter lighting makes critical helicopter operations possible at any hour and under varied conditions.



As aviation technologies evolve, so too must the infrastructure that supports them. Helipad perimeter lighting, enhanced by innovation and guided by international standards, will continue to illuminate the path toward safer skies and smarter airspace operations.
