Detailed introduction

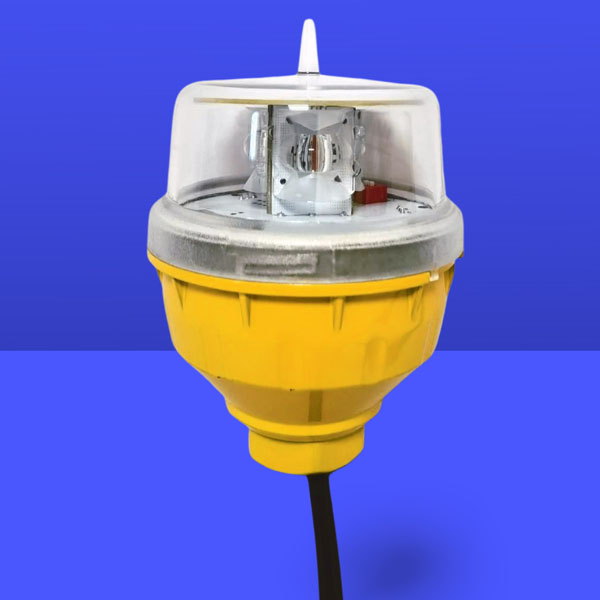

The L-810 Low Intensity Obstruction Light is a reliable, energy-efficient solution designed to enhance the visibility of low-rise structures, such as buildings, towers, and antennas, to ensure aviation safety. This light is typically used for night-time or low-visibility conditions, signaling potential hazards to aircraft. The L-810 is engineered to meet FAA and ICAO regulations for low-intensity lighting, offering consistent performance in various weather conditions. It features a long-lasting LED design, providing superior durability and low maintenance requirements compared to traditional lighting systems. The light operates with minimal energy consumption, contributing to cost savings and reducing the environmental impact. With a robust housing and weatherproof design, the L-810 is suitable for both urban and remote locations, making it an ideal choice for reliable, eco-friendly obstruction lighting.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Powered by high-performance CREE LEDs, this light delivers intense brightness while consuming minimal energy.
2. Available in flexible input voltage options: DC (12-48V) or AC (100-265V AC, 50-60Hz).
3. The protective cover is crafted from UV-resistant polycarbonate with a distinctive design for added durability.
4. Featuring an optimized photometric design, it ensures superior light distribution and full compliance with ICAO and FAA standards.
5. Constructed from die-cast aluminum, the base offers exceptional corrosion resistance, impact protection, and enhanced longevity.
6. Designed for easy installation, the no-screw assembly requires simply twisting the cover for a secure fit.
7. Integrated with a built-in photocell for automatic switching between day and night modes.
8. Includes surge and lightning protection to enhance reliability.
9. Compatible with standard 3/4 inch pipe thread for easy installation.
Specification:
|
Product Name |
L 810 light low intensity obstruction light low intensity obstacle light |
|
Mode NO.: |
AO-LI-B1 |
|
Color: |
Red/yellow/blue/white etc |
|
Light source:
|
CREE LED |
|
LED life time
|
100000hrs |
|
Light Intensity(cd): |
>32.5cd |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
Fixed light/20/30/60fpm adjustable by DIP switch
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<3W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
0.3kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

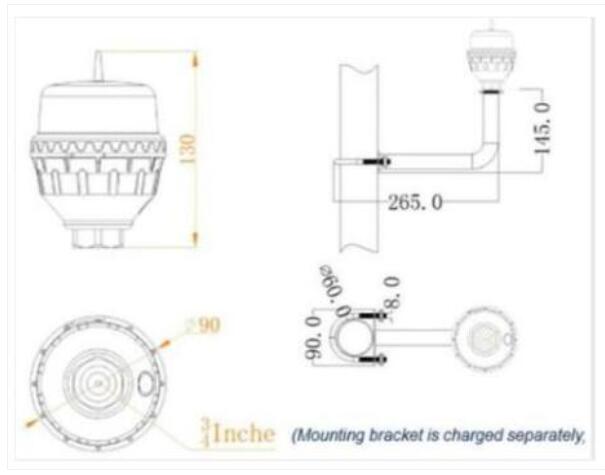

Dimension & Installation:
Applications:
The L-810 Low Intensity Obstruction Light is designed for marking low-rise structures such as buildings, towers, and antennas to ensure aviation safety. It is primarily used in urban areas and locations with low visibility, signaling potential hazards to aircraft. Compliant with ICAO and FAA regulations, it provides reliable illumination in both day and night conditions. With its energy-efficient LED technology, the L-810 is ideal for reducing maintenance costs and energy consumption, offering a durable, long-lasting solution for aviation obstruction lighting.
