Detailed introduction
The Dual Low Intensity Obstacle Light, also known as the Double Obstruction Light, is designed to enhance the visibility of structures in compliance with aviation safety standards. Ideal for marking obstacles such as buildings, towers, and antennas, it provides both daytime and nighttime visibility to aircraft. This light features a dual light configuration, offering an effective and reliable signaling solution for low-rise structures that require a low-intensity light system. It meets ICAO and FAA regulations, ensuring optimal safety.
Built with high-performance LED technology, the Dual Low Intensity Obstacle Light offers energy efficiency, extended service life, and reduced maintenance compared to traditional lighting systems. The rugged, weather-resistant housing ensures durability and protection against environmental factors, making it suitable for both urban and remote locations. The light operates on a wide range of input voltages (DC 12-48V or AC 100-265V), providing flexible installation options. Additionally, it includes a built-in photocell for automatic day-night operation and is designed with surge and lightning protection for enhanced reliability. Its easy installation with a 3/4 inch pipe thread ensures quick setup and secure mounting. The Dual Low Intensity Obstacle Light is a reliable, cost-effective solution for marking obstacles while maintaining high safety standards.
Overview:
The FAA L810 Low Intensity Obstruction Light AO-LI-D1 is a dual light system offering both fixed and flashing light options, with a range of color choices to suit different applications. Designed in a main-standby configuration, the system ensures continuous operation by automatically activating the standby light if one light fails. Compliant with ICAO regulations, this low-intensity obstruction light is ideal for marking obstacles up to 45 meters in height, ensuring visibility at night. The light utilizes high-performance CREE LEDs, delivering excellent brightness, stability, and a long operational lifespan. This reliable, cost-effective solution is perfect for marking buildings and other structures, providing essential aircraft warning signals.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Powered by high-performance CREE LEDs, this light offers exceptional brightness while consuming minimal energy.
2. It supports both DC (12-48V) and AC (100-265V AC, 50-60Hz) input voltage options for versatile installation.
3. The protective cover is crafted from UV-resistant polycarbonate, featuring a unique design for enhanced durability.
4. With a well-engineered photometric design, it ensures optimal light distribution and meets both ICAO and FAA standards.
5. Constructed from die-cast aluminum, the base offers superior corrosion resistance, impact protection, and a long service life.
6. The tool-free, no-screw design allows for quick and secure installation by simply twisting the cover into place.
7. A built-in photocell automatically switches between daytime and nighttime operation for added convenience.
8. Equipped with surge and lightning protection for reliable performance in challenging conditions.
9. Designed for easy installation with a standard 3/4-inch pipe thread connection.
Specification:
|
Product Name |
Dual low intensity obstacle light double obstruction light low intensity AO-LI-D1 |
|
Mode NO.: |
AO-LI-D1 |
|
Color: |
Red/yellow/blue/white etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>32.5cd |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
Fixed light/20/30/60fpm adjustable
|
|
Operation Mode: |
Main and standby mode, Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<6W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
1.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

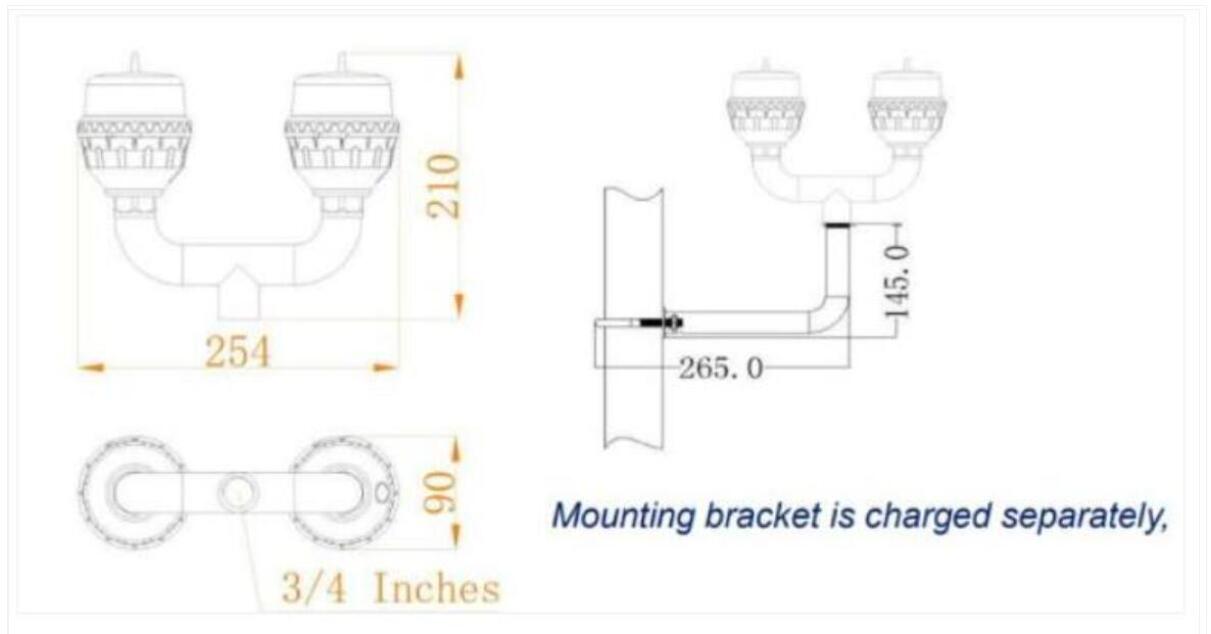

Dimension & Installation:
Applications:
The Dual Low Intensity Obstacle Light is designed to improve aviation safety by marking low-rise structures, such as buildings, antennas, and towers, ensuring they are visible to aircraft. This dual light system provides both fixed and flashing light options and is ideal for structures with heights up to 45 meters, complying with ICAO and FAA regulations. The main-standby mode ensures continuous operation, with the backup light automatically activating in case of a malfunction. Powered by high-efficiency CREE LEDs, the light offers long-lasting performance, low energy consumption, and reliable operation, making it a cost-effective and durable solution for obstacle marking.
